PV-BY-03 30A/50A 1000V Panel Mount Photovoltaic Connector

Product Features

• PV-BY-03 series panel mount photovoltaic connector is designed to meet the stringent requirements of photovoltaic systems and is designed for optimal performance and reliability. Its current ratings of 30A and 50A ensure efficient energy transfer, making it an important component in residential and commercial solar installations. The connector is rated at 1000VDC and complies with IEC and UL standards, ensuring its suitability for high-voltage applications in the solar field.
• PV-BY-03 series PV connector can withstand extreme environmental conditions, with ambient temperatures ranging from -40°C to +90°C. This broad temperature tolerance ensures that the connector maintains its integrity and performance in any climate. Additionally, the connector is rated IP68 when mated and IP2X when unmated, making it highly dustproof and waterproof. This level of protection is critical for outdoor installations, as exposure to the elements can compromise the functionality of smaller connectors. The PV-BY-03's rugged design ensures it will keep operating in even the most challenging environments, making it a reliable choice for solar professionals.
• The technical specifications of the PV-BY-03 series 30A/50A 1000V panel mount photovoltaic connector further enhance its appeal. The plug contact resistance is only 0.5mΩ, minimizing energy loss during transmission, thereby maximizing the efficiency of the solar power generation system. Contact material is made of copper, tinned to enhance corrosion resistance and ensure long-lasting performance. The connector features a snap-on locking system and is designed for compatibility with MC4 connectors, providing a secure and secure connection that can withstand harsh installation and operation. Additionally, the UL94-HB/UL94-V0 flame retardant rating ensures the connector meets strict safety standards, making it a safe choice for any solar project.
• The PV-BY-03 series PV connector is compatible with a variety of cable sizes, including 2.5mm², 4mm² and 6mm², allowing for installation flexibility and ensuring it can meet a variety of system requirements. This versatility makes it ideal for solar installers looking to streamline operations without compromising on quality.

Technical Parameters

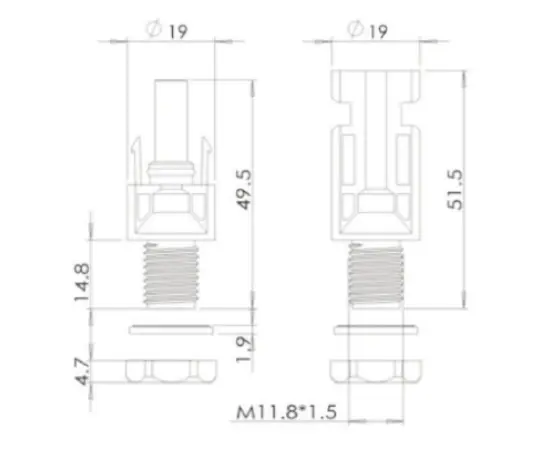

Dimensions
