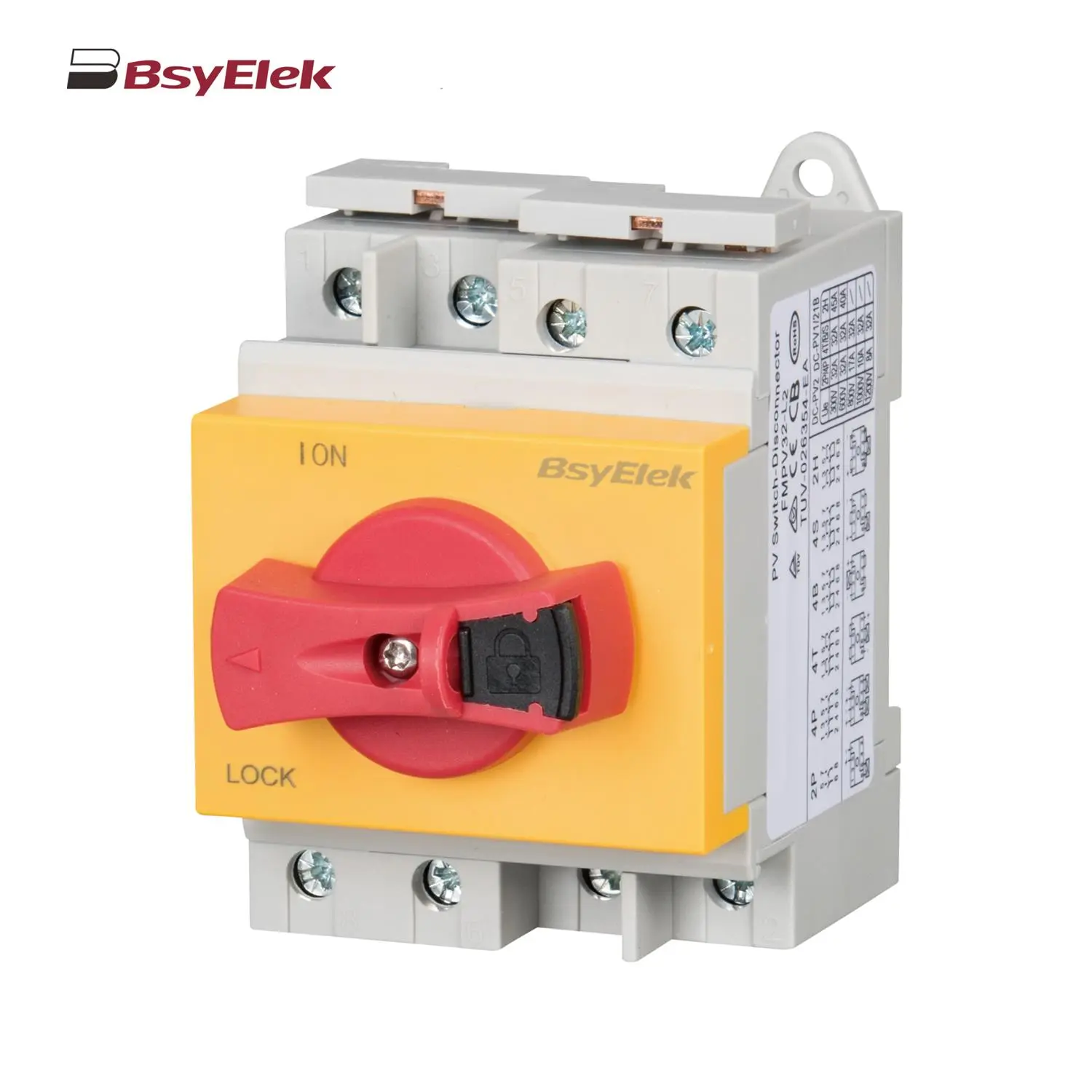

BYPV-L1/L2 PV Isolator Switch with Lockable Lever Handle

Product Features

• The BYPV-L1/L2 series photovoltaic isolator switch is specifically designed for residential and commercial photovoltaic (PV) systems ranging from 1KW to 20KW. Installed between PV modules and inverters, this isolator switch ensures safe disconnection and maintenance of solar systems. It features a lockable lever handle, which can be secured in the 'OFF' position to prevent accidental reconnection during maintenance, enhancing the overall safety of the system.
• The BYPV-L1/L2 series PV isolator switch operates with a maximum voltage of up to 1200VDC and is available with rated currents of 16A, 25A, and 32A, making it versatile for a variety of PV setups. With an arcing time of less than 8ms, it significantly minimizes the risk of electrical hazards by quickly disconnecting the circuit when required. This fast response ensures the safety and reliability of the solar system, even under demanding conditions.
• This PV isolator switch is offered in both 2P and 4P configurations, providing flexibility for different system requirements. Its robust design uses high-quality components to ensure long-term stability, durability, and superior performance. This makes the BYPV-L1/L2 series PV isolator switch an ideal choice for installers and operators seeking reliable and efficient PV isolator switches.
• Additionally, the isolator switch is built with ease of use in mind, offering a user-friendly design that allows for quick and secure operation. Its sturdy construction and high-quality materials contribute to its excellent resistance to environmental factors, ensuring a long service life even in harsh operating conditions.
• BYPV-L1/L2 series photovoltaic isolator switch is a safe, efficient, and durable solution for PV systems. It is engineered to protect solar installations by ensuring reliable disconnection, quick arc suppression, and enhanced safety features such as a lockable handle.

Technical Parameters

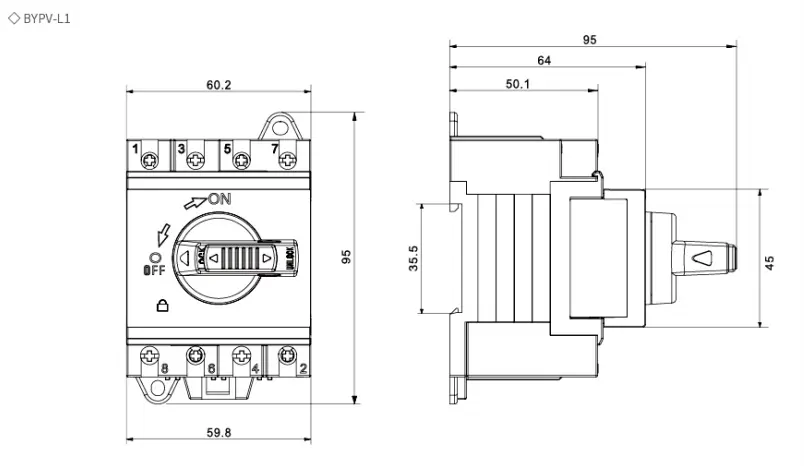

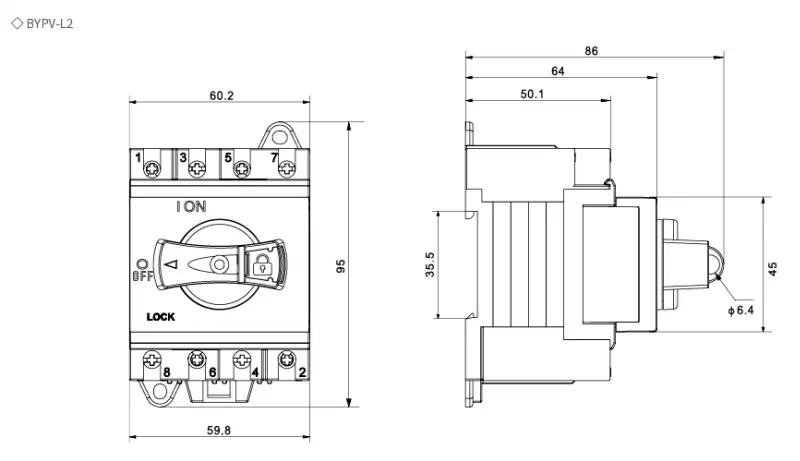

Dimensions
