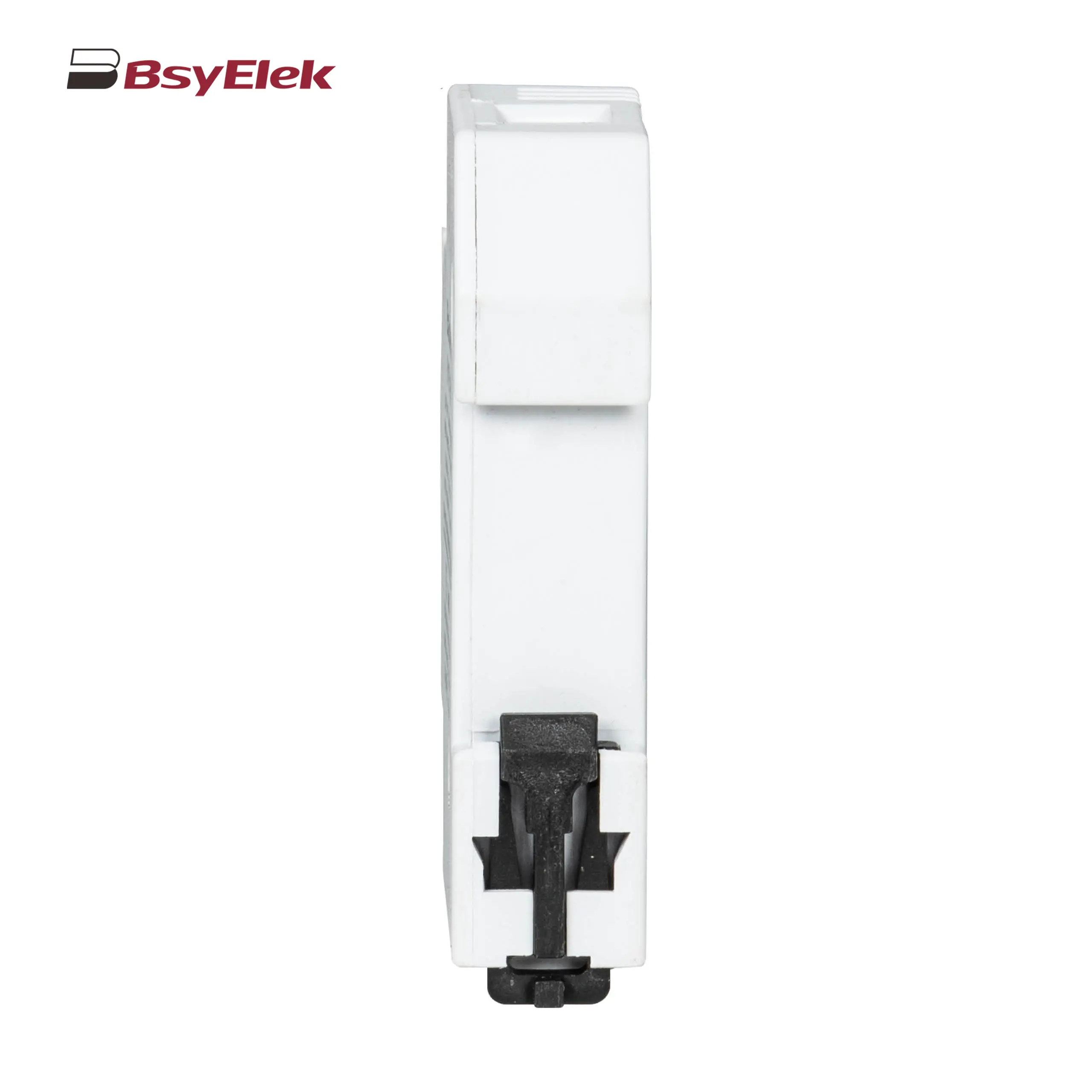

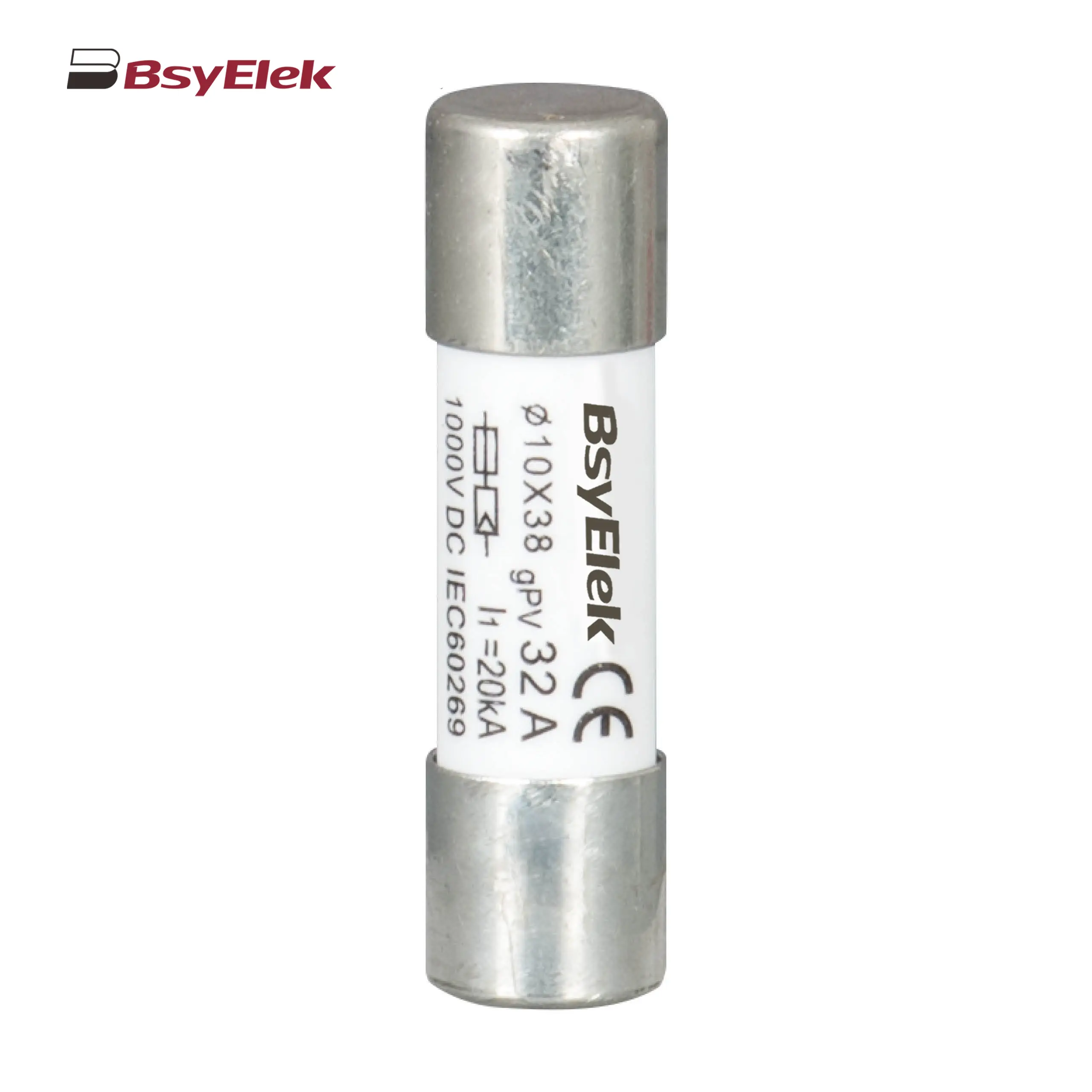

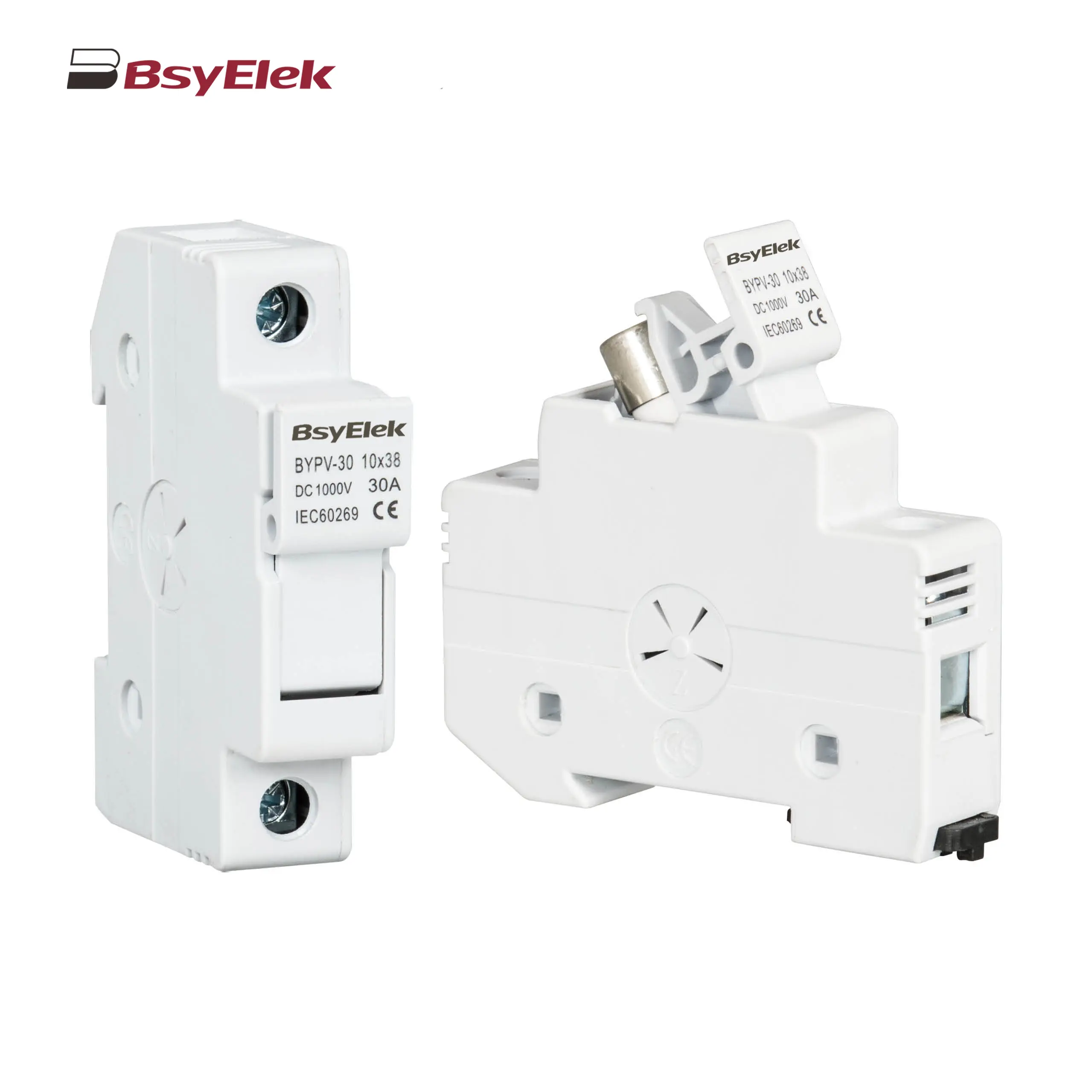

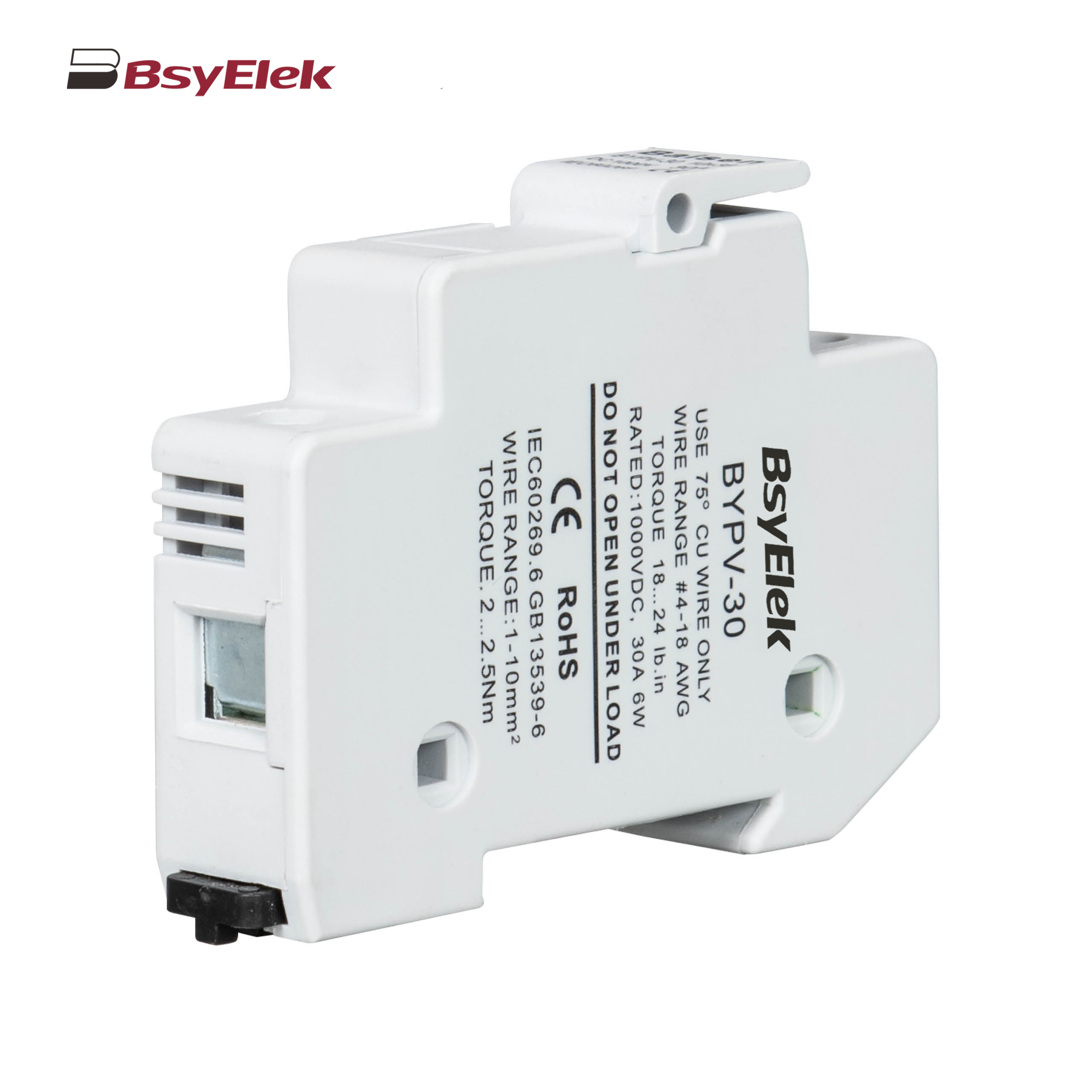

BYPV-30 1000VDC 32A Fuse Holder with 10x38mm Fuse Link

Product Features

• The BYPV-30 series 1000VDC 32A fuse holder is equipped with a 10x38mm fuse link, designed specifically for solar photovoltaic (PV) power generation applications. The fuse holder is an important component of the DC combiner box and an indispensable part of the operation of solar panels, photovoltaic modules, and inverters. By effectively managing circuit overload and short-circuit currents, the BYPV-30 series provides a reliable solution for protecting solar photovoltaic modules.
• The BYPV-30 series DC fuse is designed to handle high voltage direct current (DC) applications, with a maximum rated value of 1000VDC and a current capacity of 32A. This makes it suitable for various solar installations ranging from residential rooftops to large solar power plants. The 10x38mm fuse chain is designed to seamlessly fit into the fuse holder, ensuring a safe connection and minimizing the risk of electrical faults. The sturdy structure of the BYPV-30 series DC fuse ensures durability and service life, even in harsh environmental conditions, making it an ideal choice for outdoor solar applications.
• One of the main functions of the BYPV-30 series DC fuse is to protect solar photovoltaic modules from potential damage caused by overload and short-circuit currents. If a malfunction occurs, the fuse will melt, effectively interrupting the circuit and preventing further damage to the solar panel and related equipment. This protection mechanism is crucial for maintaining the integrity of solar power generation systems and ensuring their optimal performance. By incorporating the BYPV-30 series DC fuse into your solar device, you can enhance the safety and reliability of your power generation system, ultimately improving efficiency and reducing maintenance costs.

Technical Parameters

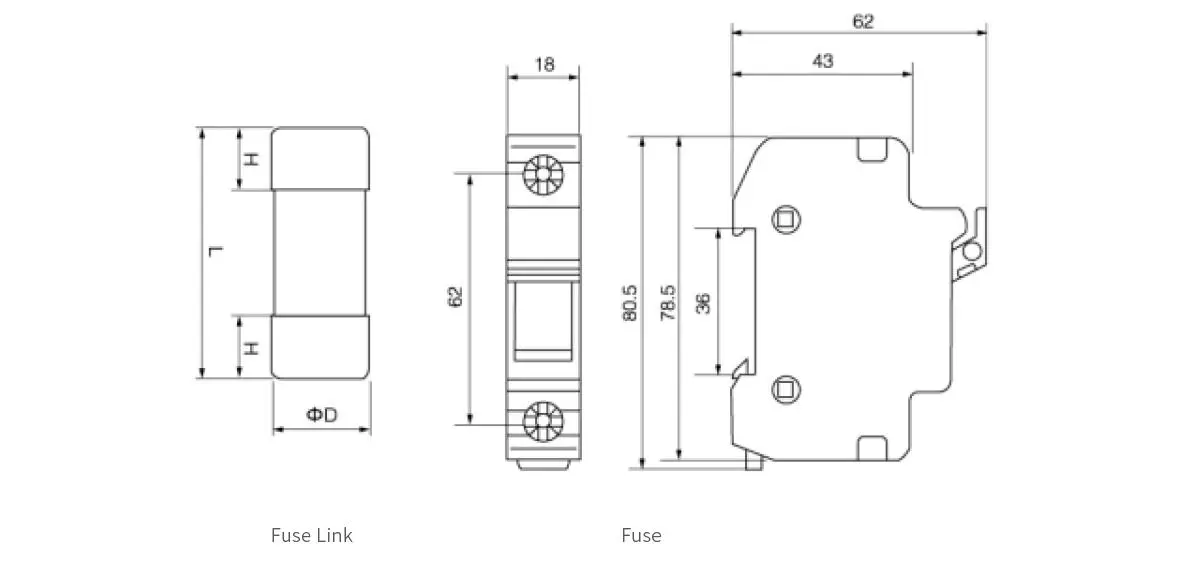

Dimensions
