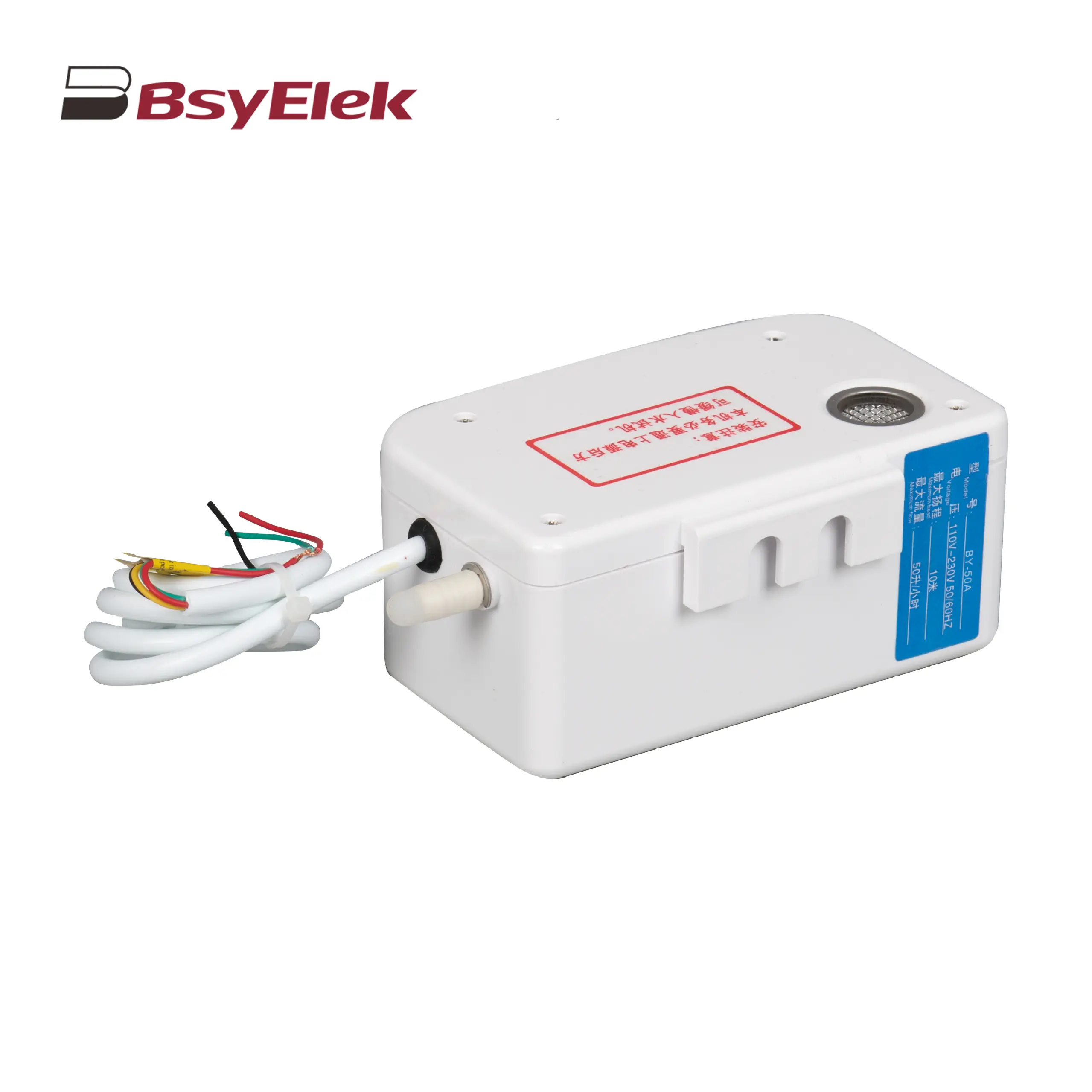

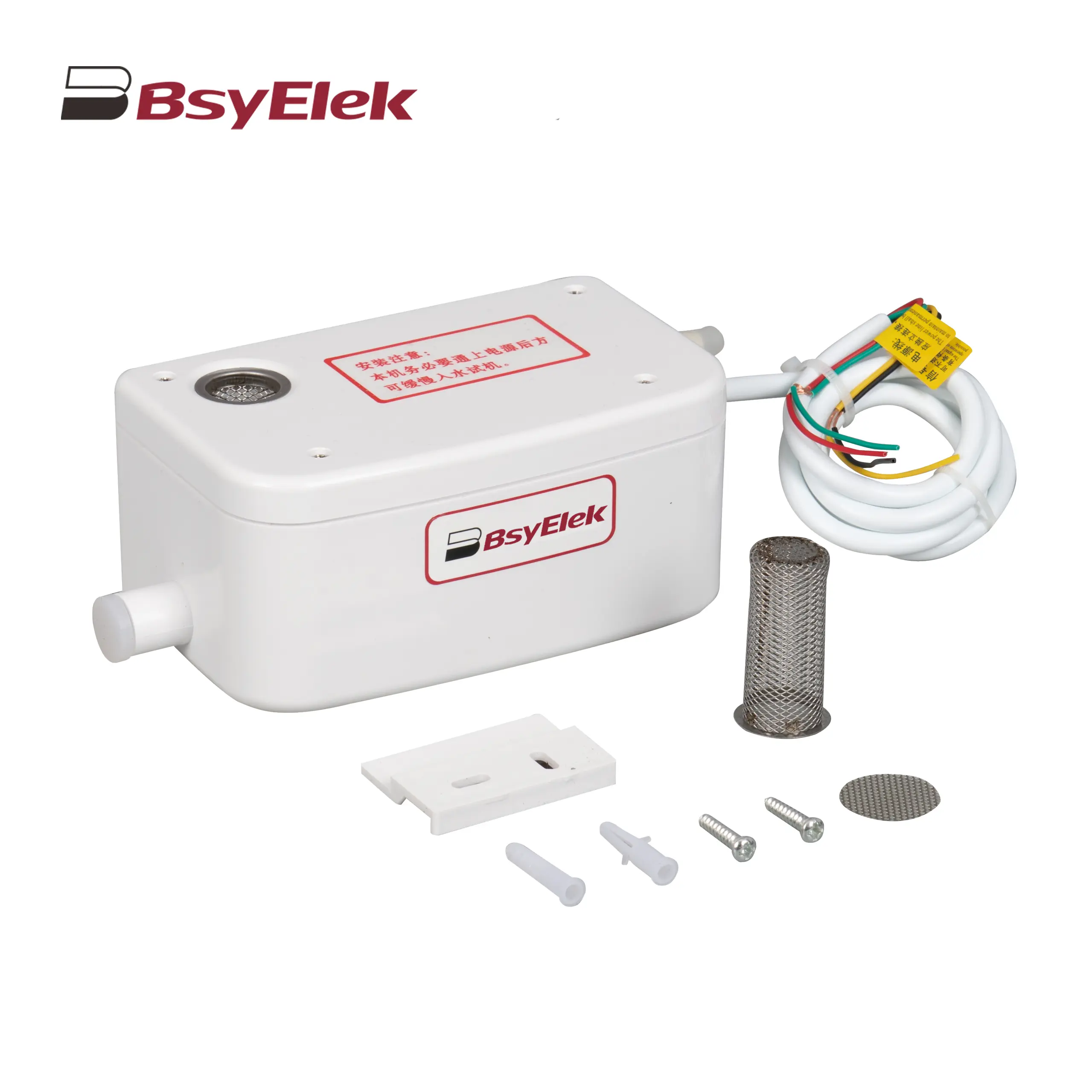

BY-50A 12M Drainage Pump of Air Conditioner

Product Features

• The BY-50A series 12m drainage pump is a high-performance solution designed for air conditioners, featuring low noise and vibration-free operation for enhanced comfort and efficiency. It is engineered with an imported chip control system, ensuring precise operation and reliability. This pump is versatile and compatible with global voltages, operating seamlessly within a range of 110V-230V and frequencies of 50Hz or 60Hz, making it ideal for various international applications.
• With a maximum recommended lift of 12 meters and a maximum flow rate of 50L/h, the BY-50A series 12m drainage pump is capable of handling demanding drainage requirements. It is suitable for fan coil units and ceiling-mounted cassette air conditioners, providing efficient condensate water removal in both residential and commercial environments. The pump supports air conditioning systems with a power capacity of up to 15KW (45,000 BTU/hr), making it compatible with a wide range of HVAC applications.
• The pump features a 180ML water storage tank and is designed for non-continuous operation, making it effective for intermittent drainage tasks. One of its standout features is the optional water inlet direction, allowing users to choose between an upper or side inlet based on installation requirements, adding flexibility and ease to the setup process.
• Operating at a noise level of just 43dB(A) at 0.3 meters, the BY-50A series 12m drainage pump ensures a quiet environment, making it suitable for noise-sensitive spaces such as bedrooms, offices, hospitals, or libraries. Its compact and robust design allows for easy installation, and the pump's durability ensures long-term performance with minimal maintenance.
• In summary, the BY-50A series 12m drainage pump is a reliable, efficient, and user-friendly solution for air conditioner drainage. With its low noise operation, imported chip control, global voltage compatibility, and optional water inlet directions, it is an excellent choice for fan coils, ceiling-mounted cassettes, and other HVAC applications requiring dependable condensate management.

Technical Parameters

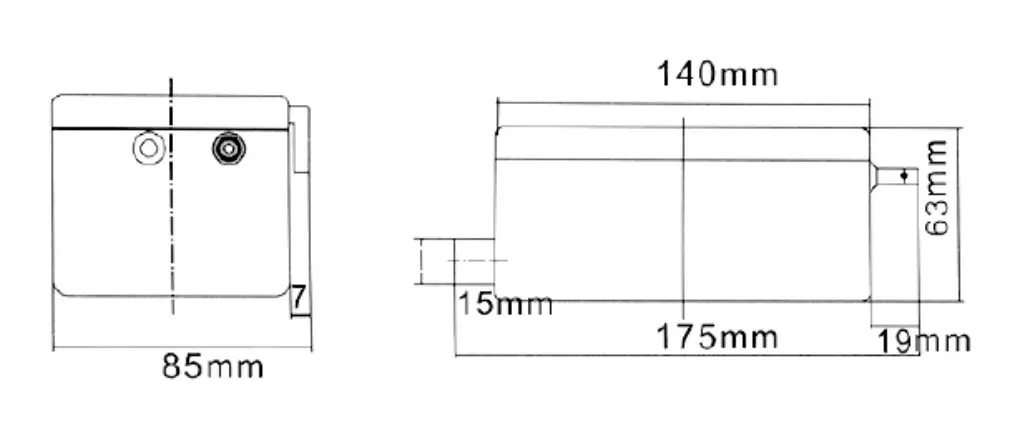

Dimensions
