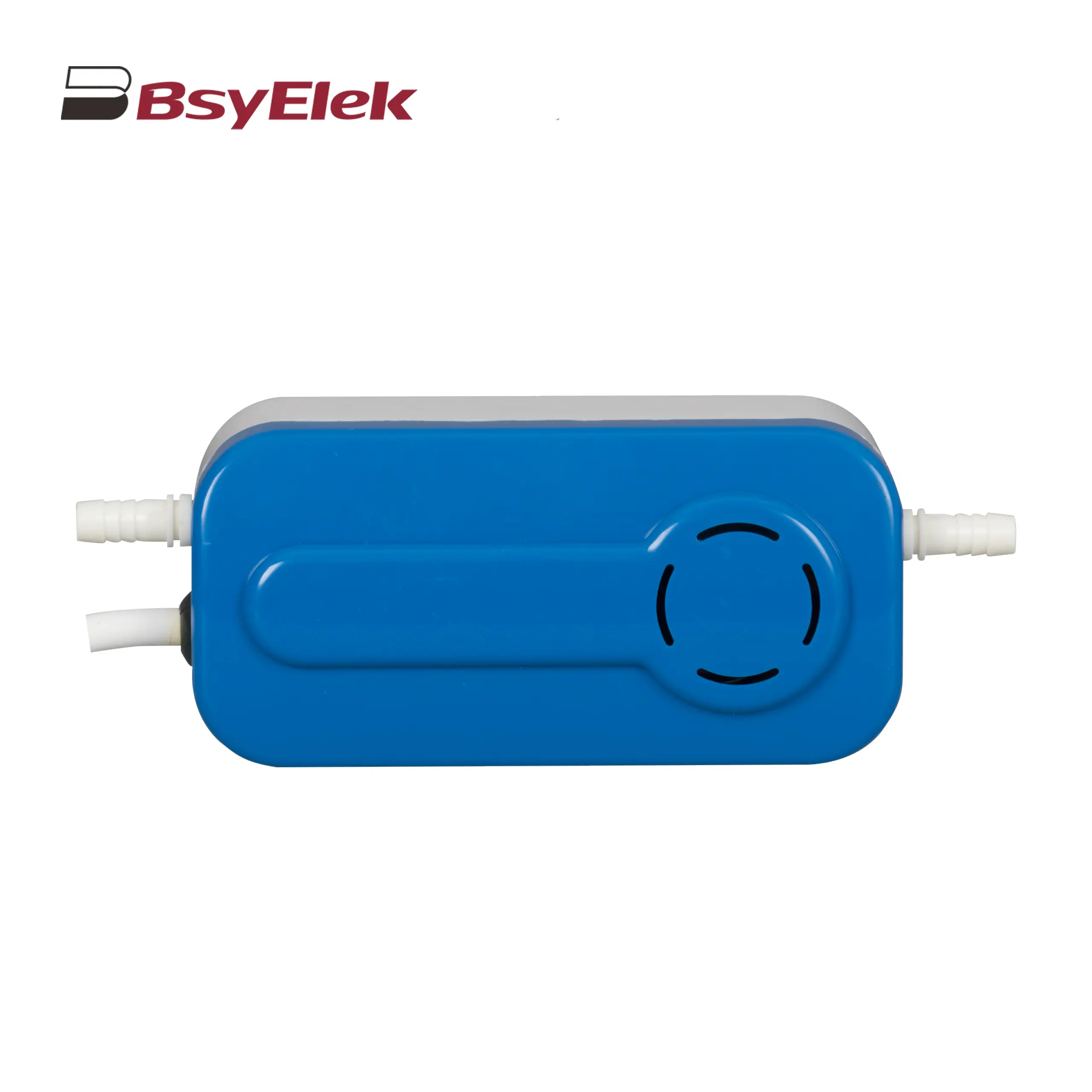

BY-24B/40B 10M Split Type Drainage Pump

Product Features

• The BY-24B/40B series split-type drainage pump is designed to deliver reliable and efficient performance, making it an ideal solution for multi-evaporator air conditioners and ceiling-mounted cassette units. With a maximum recommended head of 10 meters and imported chip control, the pump ensures precision and stability in operation. It features ultra-quiet performance with no vibration, making it suitable for noise-sensitive environments.
• This compact and elegantly designed pump is compatible with all voltages worldwide (110V-230V/50Hz/60Hz), ensuring versatility across various applications. Its small size and sleek appearance allow for easy installation in tight spaces without compromising functionality. The pump is equipped with a 60ML water storage tank capacity and provides a non-continuous operating level, making it suitable for systems with intermittent drainage requirements.
• The BY-24B/40B series split-type drainage pump offers a maximum flow rate of 24L/h, while the BY-40B model delivers up to 40L/h, catering to different air conditioning power needs. The pump supports air conditioner capacities of up to 15KW (45,000 BTU/hr) for BY-40B and 8KW (30,000 BTU/hr) for BY-24B, making it ideal for a wide range of residential and commercial applications.
• With a noise level of just 40.5dB(A) for BY-24B and 42.5dB(A) for BY-40B at a distance of 0.3 meters, the pump ensures quiet operation without disturbing the environment. Its advanced chip control enhances durability and performance, making it a reliable choice for air conditioning systems.
• The BY-24B/40B series split-type drainage pump combines functionality, quiet operation, and a compact design, making it a preferred option for modern HVAC systems that require efficient and reliable drainage solutions.

Technical Parameters

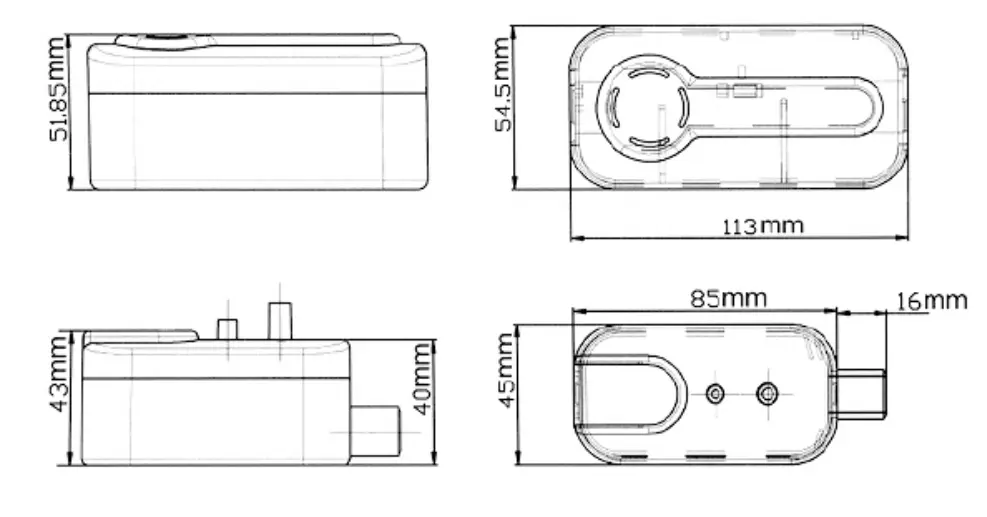

Dimensions
