What is a Residual Current Circuit Breaker and How Does it Work?

A Residual Current Circuit Breaker (RCCB) plays a crucial role in electrical safety. According to electrical safety expert John Smith, “RCCBs save lives by preventing electrical shocks.” This device detects imbalances in electrical currents. If a fault occurs, it interrupts the circuit instantly, minimizing potential harm.

Understanding how a Residual Current Circuit Breaker works is essential for homeowners and businesses alike. It operates by monitoring the current flow. If it senses an imbalance between live and neutral wires, it reacts swiftly. This response is vital in preventing accidents, especially in wet or outdoor environments.

Despite their benefits, many users overlook the importance of regular testing. An RCCB that isn’t maintained might not function properly when most needed. It's a stark reminder that while technology offers protection, our vigilance is just as critical. To ensure safety, routine checks of the Residual Current Circuit Breaker are necessary.

Table of Contents [Hide]

1 What is a Residual Current Circuit Breaker?

2 Key Components of Residual Current Circuit Breakers

3 How Residual Current Circuit Breakers Detect Electrical Imbalances

4 The Functionality of Residual Current Circuit Breakers in Safety Measures

5 Installation and Maintenance Tips for Residual Current Circuit Breakers

What is a Residual Current Circuit Breaker?

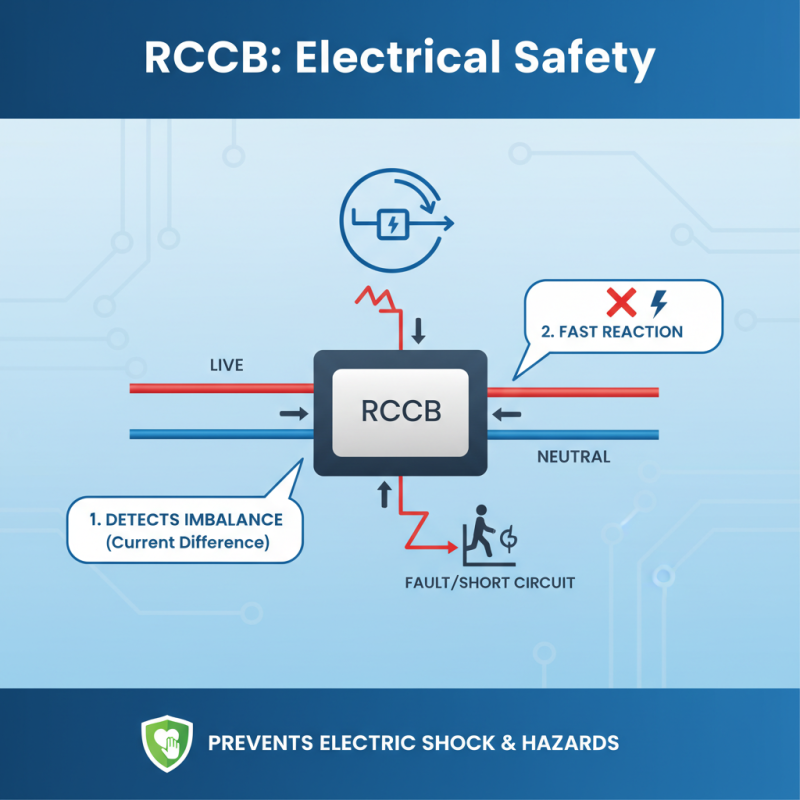

A Residual Current Circuit Breaker (RCCB) is a crucial safety device in electrical installations. Its primary function is to detect electrical imbalances. These imbalances can occur when a fault, such as a short circuit, arises. When the RCCB detects a difference in current between the live and neutral wires, it reacts quickly. This response helps prevent electrical shocks and potential hazards.

Installing an RCCB can enhance home safety significantly. Imagine a scenario where a faulty appliance causes a leakage of electricity. Without an RCCB, this could result in severe electric shock or fire. The RCCB disconnects the circuit, allowing the electricity to flow only when the system is stable. However, it may not work in all circumstances, especially with certain types of faults.

While RCCBs are effective, they require regular testing. Many users forget to perform these tests. A neglected device might fail to work when needed the most. It's essential to be proactive, testing it monthly. This simple action can save lives. Understanding how this device functions aids in making informed decisions about home safety, adding a layer of protection that is often overlooked.

Key Components of Residual Current Circuit Breakers

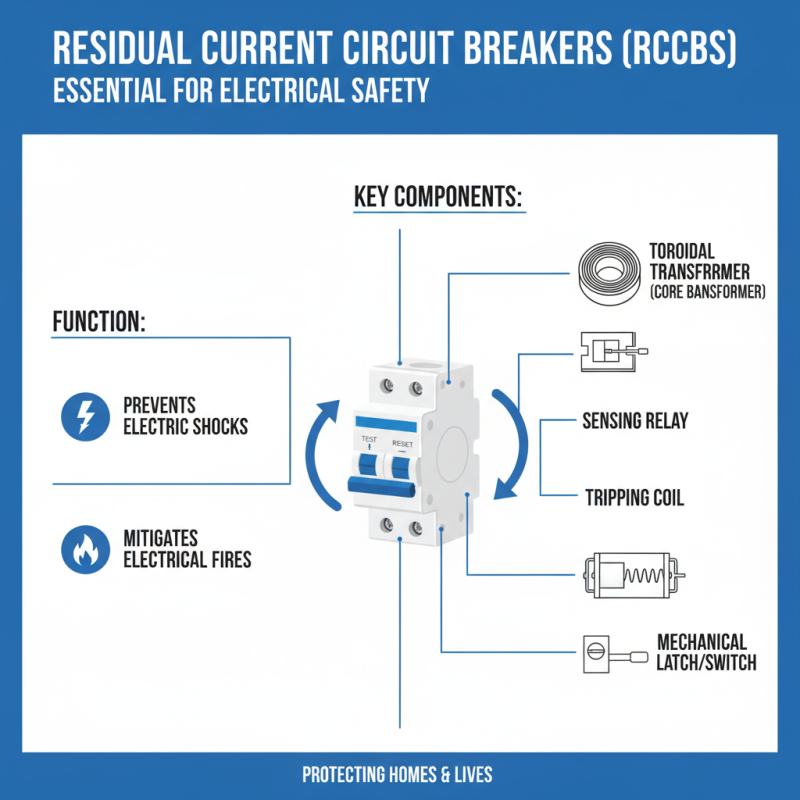

Residual Current Circuit Breakers (RCCBs) are crucial for electrical safety. Their main function is to prevent electric shocks and electrical fires. Each RCCB has several key components that work together to ensure safety.

The core component is the residual current sensor. It detects any imbalance between live and neutral currents. If there’s a fault, the sensor triggers the circuit to break. Additionally, there’s a test button that allows for regular checks. Users should press it monthly to ensure proper functioning.

Another important part is the mechanism that disconnects the circuit. It reacts quickly when a fault is detected. This mechanism can sometimes fail. Regular maintenance is necessary to avoid such occurrences. Also, installation should be performed by qualified personnel. This minimizes the risk of errors during setup. Misunderstanding the RCCB could lead to dangerous situations.

How Residual Current Circuit Breakers Detect Electrical Imbalances

Residual Current Circuit Breakers (RCCBs) are crucial for electrical safety. They are designed to detect imbalances in electrical current. When they identify a difference between the live and neutral wires, they react quickly. This helps prevent electrocution and electrical fires.

How do these devices work? RCCBs monitor the amount of current flowing through each wire. If the current leaving the circuit doesn't match the current returning, the RCCB assumes there's a leak. It then cuts off the power supply almost instantly. This feature is essential for protecting people and equipment.

**Tip:** Regular testing of your RCCB is important. Press the test button at least once a month. If it fails, consult a professional for replacement.

RCCBs can sometimes trip unnecessarily. This might frustrate users, as it interrupts power supply. It might happen due to ground moisture or faulty appliances. Consider checking your devices if nuisance tripping occurs.

**Tip:** Keep your electrical systems well-maintained. Look for worn-out wires or damp areas. Proper maintenance can reduce unexpected outages.

What is a Residual Current Circuit Breaker and How Does it Work?
Feature	Description
Definition	A device that automatically disconnects the electrical circuit when it detects an imbalance.
Function	It protects against electric shocks and electrical fires by monitoring current flow.
Detection Mechanism	RCCBs compare the current entering and leaving the circuit. Any discrepancy indicates a leakage.
Tripping Current	Standard RCCBs are designed to trip at 30mA for personal protection and 100mA or 300mA for equipment protection.
Testing	Regular testing using the test button is recommended to ensure device functionality.
Installation Locations	Commonly installed in residential homes, commercial buildings, and outdoor circuits.
Advantages	Provides safety against electric shocks, reduces fire risks, and offers peace of mind.
Limitations	Cannot detect overloads; should be used with other protective devices such as circuit breakers.

The Functionality of Residual Current Circuit Breakers in Safety Measures

Residual Current Circuit Breakers (RCCBs) play a critical role in electrical safety. They detect imbalances in electrical currents. When differences arise, they trip the circuit. This rapid response can prevent severe electric shocks. According to industry reports, electric shock incidents have decreased by over 30% since RCCBs became standard in many installations. This statistic underscores their impact on safety.

RCCBs are designed to protect against ground faults. A ground fault occurs when electricity inadvertently flows to the ground. This can happen due to damaged wiring or faulty appliances. In these scenarios, an RCCB will disconnect the circuit within milliseconds. This quick action limits the potential for injury or fire.

Tips: Regularly test your RCCB to ensure it functions correctly. Simply press the "test" button on the device. If it trips, it’s working. If it doesn't, consult a professional electrician. Remember, maintaining this device is crucial for safety. Also, consider the installation of additional safety measures in high-risk areas, like kitchens or outdoors.

Residual Current Circuit Breaker (RCCB) Functionality Overview

Installation and Maintenance Tips for Residual Current Circuit Breakers

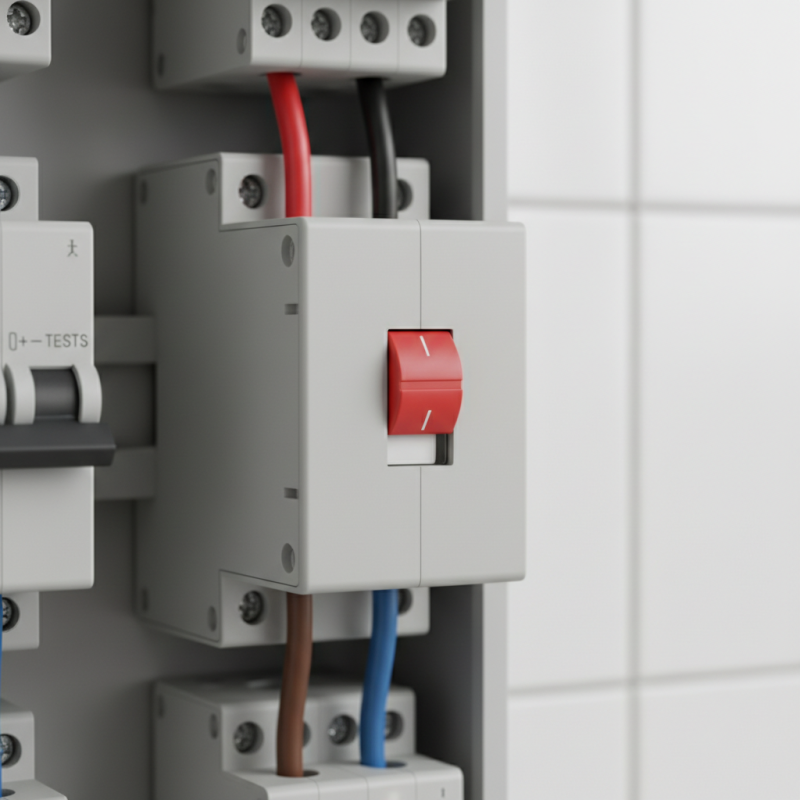

Residual Current Circuit Breakers (RCCBs) are crucial for electrical safety. They detect leaks in electrical currents and cut off power to prevent shocks. Installing an RCCB requires careful planning. It's essential to choose a suitable location near the electrical panel. Ensure the area is dry and accessible for maintenance.

When installing, follow basic wiring procedures. Use the right gauge wire to avoid overheating. After connecting, test the device using the test button. This quick check ensures it’s functioning correctly. It’s ideal to perform this test monthly. Regular checks can help you pinpoint issues.

Maintenance is equally important. Dust and debris can accumulate on the device over time. Clean the exterior with a dry cloth, being cautious not to tamper with the wiring. Record monthly tests in a logbook. If you notice any irregularities, consult an electrician. Don’t ignore flickering lights or tripped breakers. These could signal underlying problems.
