How to Choose the Right Disconnect Switch for Your Needs?

Choosing the right Disconnect Switch is crucial for safety and functionality. A Disconnect Switch is essential in isolating electrical circuits. It helps prevent accidents during maintenance or repair work.

Different applications require different types of Disconnect Switches. Some might be designed for heavy equipment, while others suit residential needs. Understanding these differences is key. Many users overlook this. They assume one size fits all. This approach can lead to inefficiencies or worse, hazards.

Careful consideration of specifications can make a significant difference. Factors like voltage ratings, current capacity, and mounting options are vital. Each detail shapes the final choice. Remember, a poorly chosen Disconnect Switch may not only fail but could also pose risks. It's worth taking time to evaluate your specific needs. Consider both current and future applications. The right switch will serve effectively in the long run.

Table of Contents [Hide]

1 Factors to Consider When Selecting a Disconnect Switch

2 Types of Disconnect Switches and Their Applications

3 Understanding Electrical Ratings and Specifications

4 Installation and Maintenance Tips for Disconnect Switches

5 Safety Standards and Compliance for Disconnect Switches

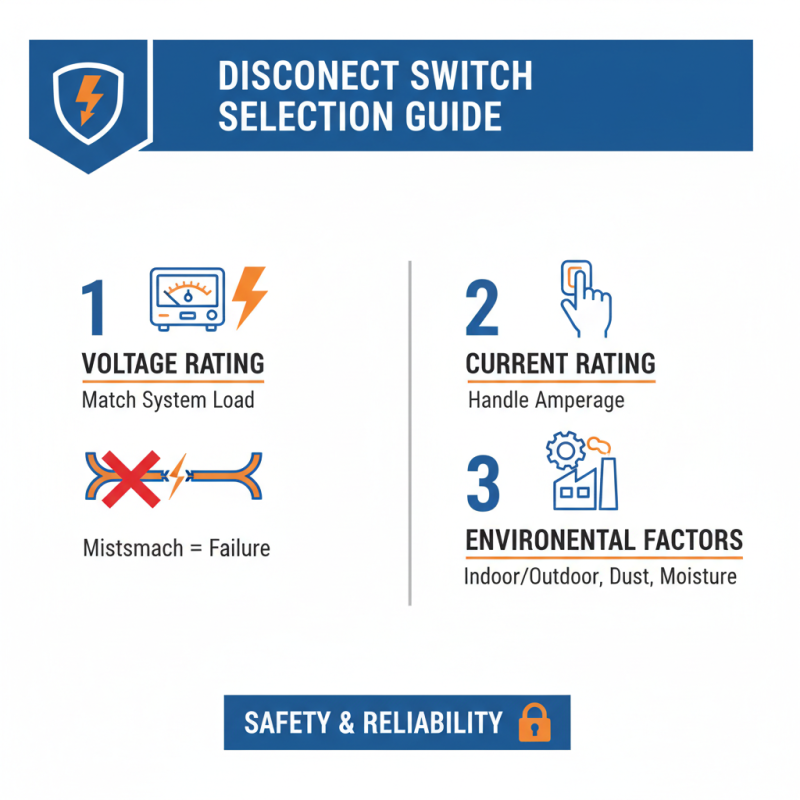

Factors to Consider When Selecting a Disconnect Switch

When choosing a disconnect switch, several key factors come into play. First, voltage rating is crucial. Ensure the switch can handle the electrical load of your system. A mismatch could lead to equipment failure.

Current rating is another significant factor. You must select a switch that meets or exceeds the expected amperage. Underestimating this can also result in overheating. Consider the installation environment. Is it indoor or outdoor? Wet or dry? Each scenario has specific requirements.

**Tip:** Always check the switch's IP (Ingress Protection) rating. This reflects its ability to resist dust and water.

Look at the type of operation needed. Manual switches require human interaction, while automatic ones function independently. Evaluate the frequency of use too. Frequent operations may demand a more robust solution.

**Tip:** Don't overlook the mounting options. Some switches are easier to install in tight spaces.

Finally, materials and durability are essential. Corrosion can significantly damage switches. Opt for materials suited for your environment. Reflect on all these factors carefully to make an informed choice.

Types of Disconnect Switches and Their Applications

Disconnect switches are essential in various applications. They serve to isolate electrical circuits safely. Understanding the types is crucial for effective decision-making. Common types include load break switches and molded case switches. Load break switches enable safe operation under load. According to a recent industry report, their efficiency can improve energy management by up to 20%.

Molded case switches are also widely used, particularly in industrial settings. They provide reliable protection against overloads. Data shows that these switches can handle currents up to 800A, making them suitable for heavy-duty applications. Their compact design saves valuable space.

Selecting the right switch is not always straightforward. Many overlook how environmental factors impact switch performance. Humidity and temperature can reduce a switch's lifespan. Proper assessment of the installation site is essential. Understanding your specific needs and regulations will lead to better choices.

Understanding Electrical Ratings and Specifications

Choosing a disconnect switch involves understanding its electrical ratings and specifications. An essential factor is the switch's amperage rating. This refers to the maximum current it can handle safely. Look for a switch with a rating that exceeds your application’s maximum load. If the switch is under-rated, it can overheat. This overload might even cause a failure or pose fire risks.

Voltage rating is another key consideration. Ensure the switch is appropriate for the voltage of your system. A mismatch can lead to equipment damage or safety hazards. Enclosure type also matters. A switch for outdoor use needs a weatherproof enclosure while indoor switches can often be simpler. Always check the IP rating, which indicates its level of dust and moisture protection.

Lastly, consider the application. Some switches may have features like locking mechanisms or remote operation. These might be necessary in certain environments. Look for additional specifications that suit your needs. Not all switches are designed equally. Take the time to evaluate your specific requirements before making a decision.

How to Choose the Right Disconnect Switch for Your Needs? - Understanding Electrical Ratings and Specifications

Switch Type	Voltage Rating (V)	Current Rating (A)	Poles	Mounting Type	Application
Non-fusible	600 V	30 A	1 Pole	Surface mount	General industrial
Fusible	480 V	60 A	3 Pole	Box mount	Motor disconnect
Heavy-duty	1000 V	125 A	4 Pole	Flush mount	High-power circuits
Load-break	240 V	200 A	2 Pole	Wall mount	Renewable energy systems

Installation and Maintenance Tips for Disconnect Switches

Disconnect switches are essential for safely isolating electrical circuits. When it comes to installation, proper positioning is crucial. Place the switch in an easily accessible location. This ensures quick action during emergencies. Make sure the mounting surface is stable and secure. A loose installation can lead to operational issues.

Regular maintenance is key to ensuring the longevity of a disconnect switch. Inspect the switch at least once a year. Check for signs of wear or corrosion. Also, ensure that connections are tight and secure. Loose connections can lead to overheating. Clean the switch regularly to avoid dust buildup. Dust can impede performance and cause failures.

Keep in mind that disconnect switches may need repairs over time. If you notice any irregularities in operation, do not ignore them. Addressing issues early can prevent larger failures down the line. Additionally, consider the environmental conditions near the switch. Factors like humidity and temperature can affect its performance. Always assess the situation and make adjustments if necessary.

Disconnect Switches: Types and Usage Frequency

Safety Standards and Compliance for Disconnect Switches

When selecting a disconnect switch, safety standards are paramount. These switches must comply with industry regulations, ensuring safe operation in diverse environments. According to the National Fire Protection Association (NFPA), electrical faults cause over 30,000 fires annually. Properly rated disconnect switches can mitigate risks and prevent accidents.

The International Electrotechnical Commission (IEC) emphasizes the importance of compliance with specific performance criteria. A reliable switch should meet IP ratings for ingress protection and withstand varying environmental conditions. Investing in compliant switches can enhance safety in commercial and industrial settings.

Tip: Always review certificates of compliance before purchase. This ensures the switch adheres to safety regulations.

Safety should never be second to cost. Cheaper switches may not sustain high electrical loads, increasing fire risks. The American National Standards Institute (ANSI) offers guidelines to assist in evaluating quality. Regular inspections and maintenance are vital for optimal performance.

Tip: Schedule inspections at least once a year. This can catch potential issues early on.
