7 Cable Gland Buying Tips for Global Buyers

Buying a Cable Gland across borders is rarely a simple price comparison. A low unit cost can hide poor sealing, incorrect threads, weak strain relief, or expensive installation delays. As cable-accessory engineer Michael J. Harper explains, “The smallest gland can decide whether an enclosure stays protected in the field.” That observation deserves attention.

This guide presents seven practical buying tips for global buyers. It considers cable diameter, thread compatibility, IP protection, material selection, sealing performance, certification documents, and supplier reliability. Measure the cable jacket carefully. A few millimeters can change the correct size. Check whether the enclosure uses metric, PG, or NPT threads. Do not assume that similar-looking threads will fit safely.

Look closely at the working environment. Salt air, outdoor sunlight, vibration, chemicals, and temperature changes can quickly expose weak materials. Brass, stainless steel, nylon, and specialized compounds each serve different conditions. The right Cable Gland should support the cable without crushing it. It should also maintain a dependable seal around the entry point.

Documentation matters. Ask for test reports, material information, dimensional drawings, and traceable quality records. Verify that stated certifications match the destination market and the actual product version. A certificate copied from another model is not enough.

There is no perfect purchase every time. Even experienced teams occasionally overlook installation tools or replacement availability. That is why supplier communication matters. Request samples, test fitment, confirm delivery capacity, and review after-sales support before placing a large order. Seven careful checks can prevent one very costly mistake.

Table of Contents [Hide]

1 Define Cable Gland Types, Sizes, and Materials Under IEC 62444

2 Match Cable Diameter and Thread Sizes from M12 to M63

3 Compare IP66, IP67, and IP68 Protection Ratings Under IEC 60529

4 Evaluate Temperature, Corrosion, and UV Ratings for Global Environments

5 Verify UL 514B, RoHS, REACH, and CE Compliance Before Purchase

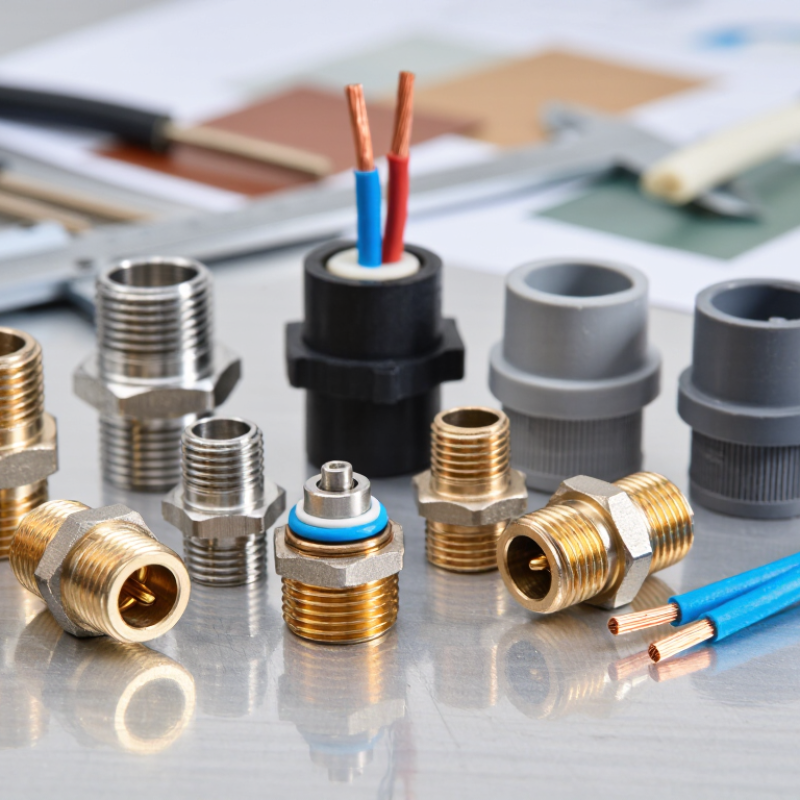

Define Cable Gland Types, Sizes, and Materials Under IEC 62444

Global buyers should define the cable gland before comparing prices. IEC 62444 provides requirements and test methods for cable glands used in electrical installations. Select the gland type according to the cable and installation risk.

Compression glands suit many standard power and control cables. Barrier glands may be necessary when sealing around individual conductors matters. Armoured cable glands require suitable clamping for the armour layers.

Size selection needs more than the cable’s nominal label. Measure the actual outer diameter, including tolerances. Match this range with the gland’s sealing insert.

Check the enclosure entry thread, such as metric or another specified thread form. A small mismatch can damage the seal. It can also reduce the intended ingress protection. Verify the required IP rating under the relevant enclosure standard, rather than assuming IEC 62444 alone confirms it.

Material choice should reflect the environment. Nickel-plated brass offers mechanical strength and general corrosion resistance. Stainless steel is more suitable for aggressive moisture or cleaning conditions. Polyamide can reduce weight and electrical conductivity concerns.

Seal materials also matter. Nitrile suits many general applications, while EPDM may perform better with selected water and weather exposures. Check temperature, chemicals, ultraviolet exposure, and cable movement.

Procurement teams sometimes choose stainless steel everywhere, but that may increase cost without improving service life.

A better specification records the cable diameter, thread, material, seal compound, temperature range, and test documentation.

Leave no guesswork.

Match Cable Diameter and Thread Sizes from M12 to M63

7 Cable Gland Buying Tips for Global Buyers

Match Cable Diameter and Thread Sizes from M12 to M63

Cable gland selection starts with the cable’s actual outer diameter. Measure the jacket with calipers, not a rough tape estimate. Then compare that value with the gland’s clamping range. M12 glands suit compact control cables, while M63 versions handle much larger power or multi-core cables. Thread size alone is not enough.

Check the full thread specification, including M12 × 1.5, M20 × 1.5, or M63 × 1.5. A matching nominal size can still fail when pitch differs. Measure the panel entry hole and confirm the available thread length. IEC 62444 provides performance requirements for cable glands, while IEC 60529 defines IP protection ratings. The rating applies to the complete installation, not the gland in isolation.

Field experience shows that rushed measurements create expensive rework. I once treated a listed diameter as exact. It was not. Jacket tolerance and compression range mattered. Leave room for locknuts and bonding accessories. The IEA’s Electricity 2024 report expects global electricity demand to grow by about 4% in 2024 and 2025. More installations increase the cost of small sizing mistakes. Ask for dimensional drawings, temperature limits, and tested sealing ranges. Check them against the cable datasheet before ordering. Shortcuts feel efficient. They often are not.

7 Cable Gland Buying Tips for Global Buyers

Match the cable outside diameter with the gland’s sealing range and confirm the thread size before ordering. The chart shows representative metric thread sizes from M12 to M63 and typical cable clamping ranges in millimeters. Actual ranges may vary according to gland material, sealing insert design, IP rating, and applicable standards.

Compare IP66, IP67, and IP68 Protection Ratings Under IEC 60529

For global buyers, IP ratings under IEC 60529 deserve careful comparison. IP66 means complete dust protection and resistance to powerful water jets. IP67 adds temporary immersion, normally up to one metre for 30 minutes. IP68 covers continuous immersion, but its test depth and duration must be specified by the manufacturer. Higher numbers are not automatically better.

A cable gland is not IP-rated in isolation. The complete cable-entry assembly requires suitable sealing, thread engagement, cable diameter, and installation torque. In field work, a small gap around an armoured cable can defeat an otherwise excellent rating. The Business Research Company’s Cable Glands Global Market Report 2024 valued the market at about USD 2.27 billion in 2024 and forecast approximately USD 3.04 billion by 2028. That growth reflects expanding demand, but not every product suits every enclosure.

Tip: Ask for the IEC 60529 test report, not only a catalogue claim. Confirm whether IP68 applies to the gland, enclosure, or complete assembly. Check the tested immersion depth and duration. Also review temperature, ultraviolet exposure, vibration, and chemical contact. IP66 may be the practical choice for outdoor cabinets exposed to rain and spray. IP67 fits occasional flooding. IP68 is more suitable for repeated immersion, yet its conditions can vary. I would not accept “IP68” without the test details. That shortcut often creates false confidence.

7 Cable Gland Buying Tips for Global Buyers — Compare IP66, IP67, and IP68 Protection Ratings Under IEC 60529

Buying Tip	What to Check Before Ordering	IP66 Protection Meaning	IP67 Protection Meaning	IP68 Protection Meaning	Buyer Action and Evidence
1. Match the rating to the actual hazard	Identify whether the installation faces dust, rain, high-pressure cleaning, temporary flooding, or continuous immersion.	First digit 6: dust-tight. Second digit 6: protected against powerful water jets from any direction.	First digit 6: dust-tight. Second digit 7: protected against temporary immersion in water up to 1 m for 30 minutes under the IEC 60529 test condition.	First digit 6: dust-tight. Second digit 8: protected against continuous immersion under conditions agreed between the manufacturer and user. The specified depth and duration must be stated.	Do not select IP68 solely because it is the highest number. Choose the test condition that reflects the installation environment and obtain the stated test depth and duration.
2. Do not assume IP ratings are automatically cumulative	Check whether the product has been tested for the specific water exposure required by the application.	IP66 confirms powerful water-jet protection, but it does not by itself confirm temporary immersion protection.	IP67 confirms temporary immersion protection, but IEC 60529 does not automatically make it suitable for powerful water jets.	IP68 confirms the declared continuous-immersion condition, but it does not automatically confirm IP66 jet protection.	For combined requirements, look for a dual marking such as IP66/IP67 or IP66/IP68, supported by test documentation. Do not infer an unmarked rating.
3. Verify cable diameter and sealing range	Compare the actual cable outside diameter, including tolerances, with the gland's approved clamping range.	A correct IP66 test result can be lost if the cable is too small, oversized, damaged, or incorrectly compressed.	Immersion resistance depends on a continuous seal around the selected cable diameter and on correct tightening.	Continuous immersion places greater demands on the seal, cable jacket, thread, washer, and installation torque.	Request a dimensional drawing, sealing-range table, cable compatibility information, and installation torque guidance.
4. Check the enclosure interface and installation method	Confirm thread type, thread size, panel thickness, mounting-hole diameter, locknut, sealing washer, and available wrench clearance.	Water-jet protection applies to the complete installed interface, not only to the gland body in isolation.	Temporary immersion performance can be affected by an incorrect hole size, cross-threading, insufficient tightening, or a missing seal.	For immersion service, the complete gland-to-enclosure connection must maintain its seal at the declared depth and time.	Use the supplier's installation instructions and verify the assembled configuration, including accessories and enclosure wall thickness.
5. Separate IP protection from material and environmental durability	Assess UV exposure, temperature, corrosion, chemicals, mechanical impact, vibration, and fire requirements separately from IP protection.	IP66 describes ingress protection against solids and water; it does not define UV resistance, corrosion resistance, or chemical compatibility.	IP67 does not by itself confirm long-term performance in salt spray, solvents, oils, outdoor sunlight, or extreme temperatures.	IP68 does not automatically establish material durability or suitability for a particular liquid, pressure, temperature, or chemical environment.	Request material information, operating-temperature limits, chemical-compatibility data, and any relevant environmental test reports.
6. Confirm electrical and mechanical suitability	Check conductor size, cable construction, strain relief, pull-out resistance, bending loads, grounding or bonding needs, and EMC requirements.	IP66 is an enclosure ingress classification; it does not specify electrical current, voltage, grounding, strain relief, or electromagnetic shielding.	IP67 does not replace requirements for cable retention, protective bonding, hazardous-area approval, or electrical safety.	IP68 does not guarantee that the gland is suitable for dynamic cables, repeated flexing, pressure cycling, or a particular electrical system.	Review the complete technical datasheet and applicable project standards. Treat EMC, hazardous-area, and electrical approvals as separate requirements.
7. Request traceable test and quality documentation	Confirm the applicable edition of IEC 60529, tested configuration, sample size where provided, test conditions, and report traceability.	Look for evidence of dust-tight testing and powerful water-jet testing corresponding to IP66.	Look for evidence of dust-tight testing and temporary immersion testing at 1 m for 30 minutes under the stated method.	Look for a clearly stated immersion depth and duration; “IP68” without these conditions is incomplete for purchasing decisions.	Request a declaration, test report or certificate, installation instructions, dimensional drawings, and a production-quality control statement. Confirm that the tested model and size match the quotation.

Important IEC 60529 note: IP ratings apply to the protection provided by an enclosure or installed assembly under specified test conditions. The final protection level depends on the gland, cable, enclosure interface, accessories, assembly quality, and the exact conditions stated for the test.

Evaluate Temperature, Corrosion, and UV Ratings for Global Environments

Temperature, corrosion, and UV ratings decide whether a cable gland survives beyond the catalog. Select a temperature range that covers both operating heat and installation cold. Outdoor equipment may face heated enclosures, winter transport, and sudden thermal cycling. IEC 60068 testing shows that environmental cycling can expose sealing weaknesses. A gland rated only for average temperature is a risky shortcut. Check the cable jacket rating too. The gland should not become the weakest component.

Tip: Match corrosion protection to ISO 9223 conditions. C1 describes very low corrosivity, while CX covers extreme marine or industrial exposure. Salt mist near ports can attack threads and locking rings within months. IEC 60068-2-52 provides cyclic salt-mist testing, but test results need careful comparison. A coating labeled “corrosion resistant” is not enough. Ask for test duration, material grade, and failure criteria.

UV damage is less visible at first. The World Health Organization classifies a UV Index of 11 or higher as extreme. Under strong sunlight, plastic seals may harden, crack, or lose compression. ASTM G154 is commonly used for accelerated UV exposure, yet laboratory hours do not equal a fixed outdoor lifetime. That conversion is imperfect. I would request the exposure cycle, irradiance, and inspection results. For desert roofs or tropical coastlines, consider UV-stabilized materials, shaded routing, and an ingress rating confirmed under the final installation. A high IP rating does not automatically prove UV durability.

Verify UL 514B, RoHS, REACH, and CE Compliance Before Purchase

7 Cable Gland Buying Tips for Global Buyers

Verify UL 514B, RoHS, REACH, and CE Compliance Before Purchase

Global buyers often treat compliance as paperwork. That is risky. A cable gland may fit perfectly yet fail a market inspection. UL 514B verification should match the gland’s construction, thread type, sealing parts, and intended enclosure use. RoHS evidence should identify restricted substances and test methods. REACH documentation must address substances of very high concern, including updates after product approval. The European Chemicals Agency’s 2023 enforcement report found 18% of inspected products breached EU chemicals requirements. The European Commission’s 2023 Safety Gate report recorded 3,412 alerts. Small documentation gaps can become expensive delays.

Tips: Request the current test report, declaration of conformity, material declaration, and certificate scope. Check model numbers, revision dates, laboratory details, and production batches. For CE marking, confirm the applicable EU directives and keep the technical file available. CE is a manufacturer’s conformity declaration, not a universal quality certificate. Ask whether the tested cable diameter matches your actual cable.

Practical verification should happen before the purchase order. Inspect markings on sample glands. Compare them with drawings and certificates. Review thread gauges, gasket material, ingress protection results, and temperature ratings. Do not rely on a generic RoHS statement. It may cover another product family. I have seen suppliers provide valid certificates with unclear scope; that is not necessarily fraud, but it requires careful review. One overlooked suffix can change the approved configuration. Independent testing is worthwhile when records conflict. The process feels slower, yet a rushed approval can cost far more.
